Fiend Raekes Bike - Trans Earth Green With Black Parts 20.8"

Fiend Raekes Bike - Trans Earth Green With Black Parts 20.8"

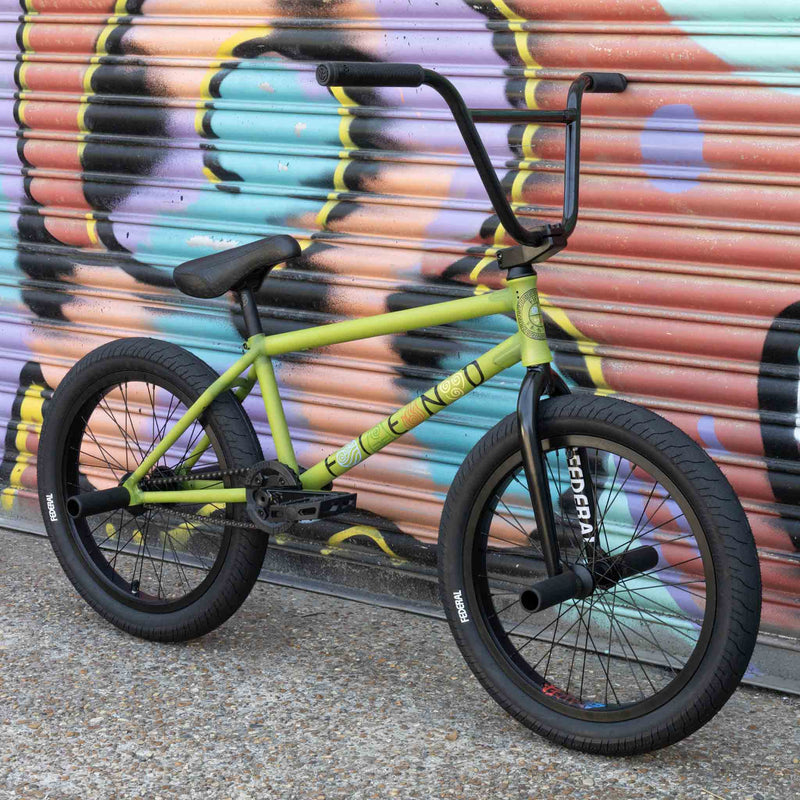

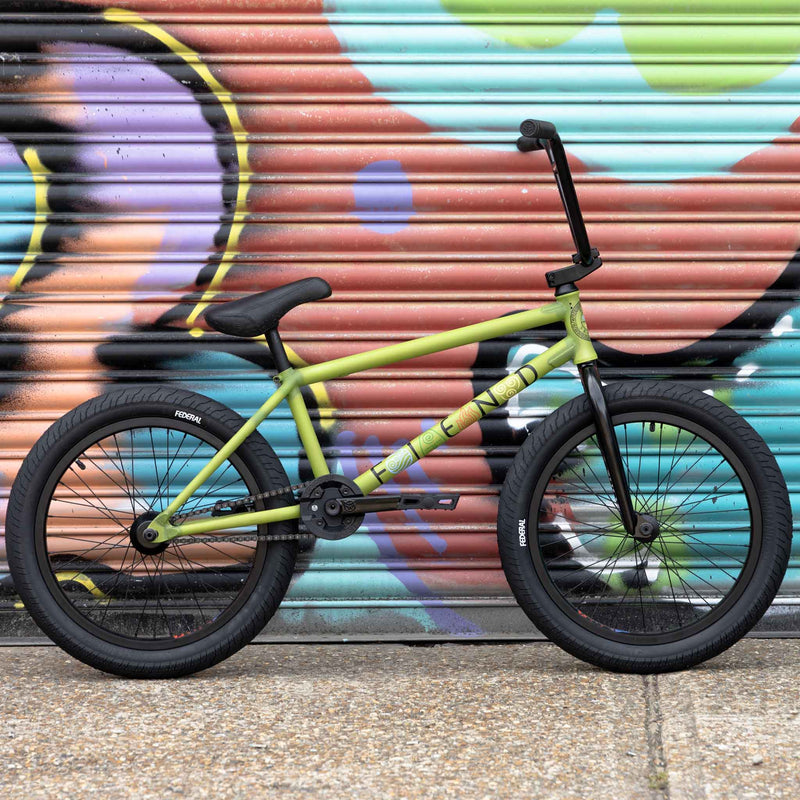

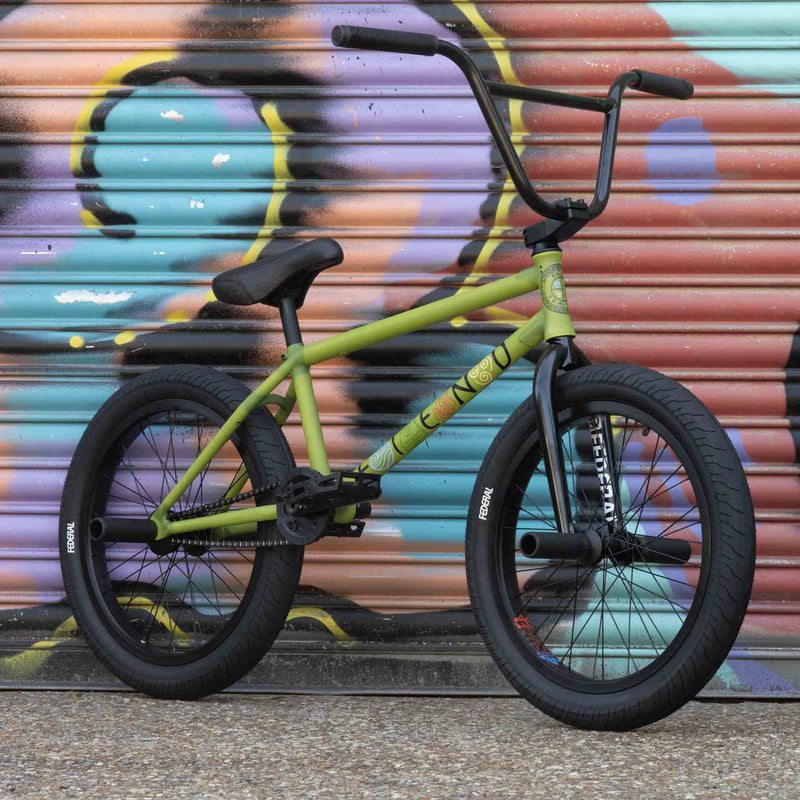

We've combined a Fiend Raekes BMX Frame with a selection of high end parts to create this one off custom BMX bike. This BMX bike features a Fiend BMX frame along with high end aftermarket BMX parts from Federal and BMX wheels from Stranger.

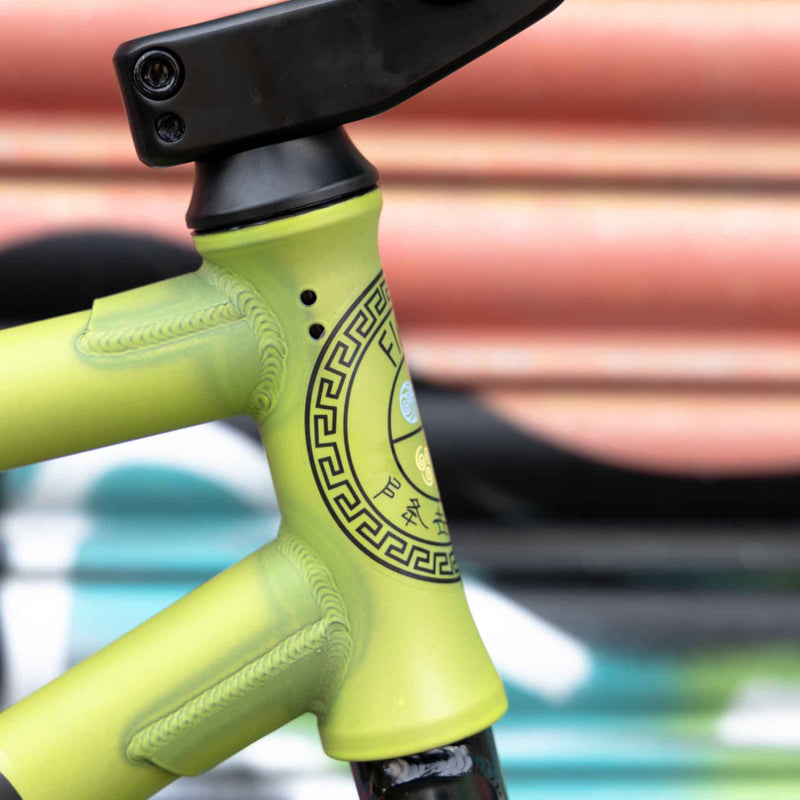

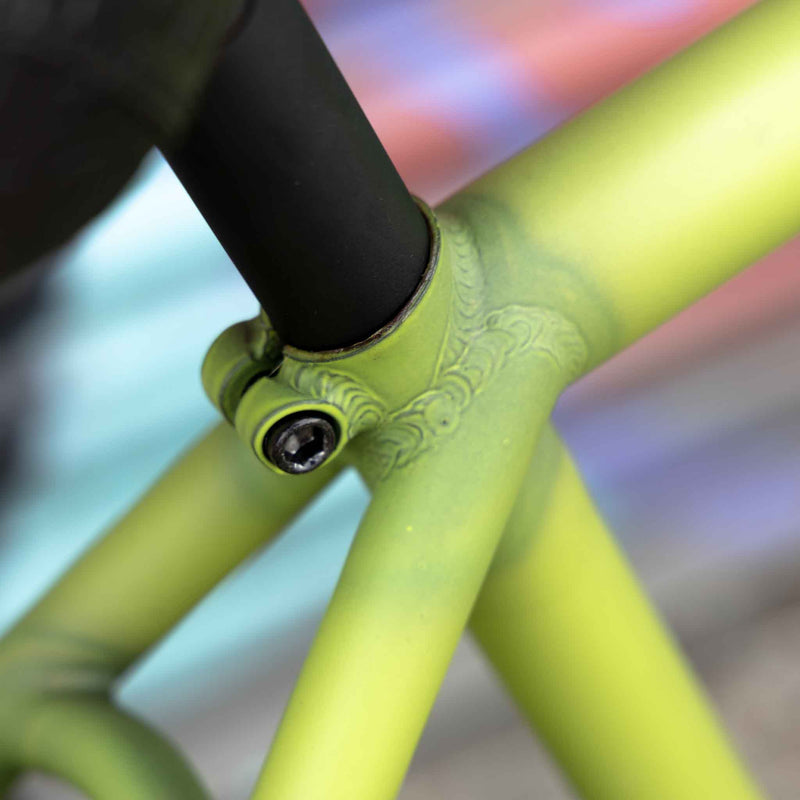

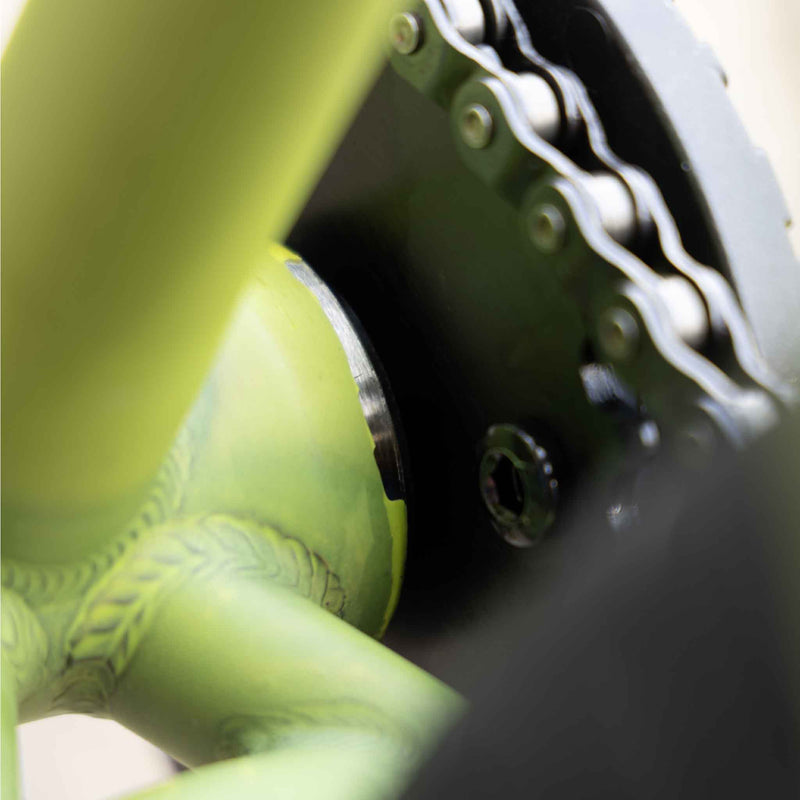

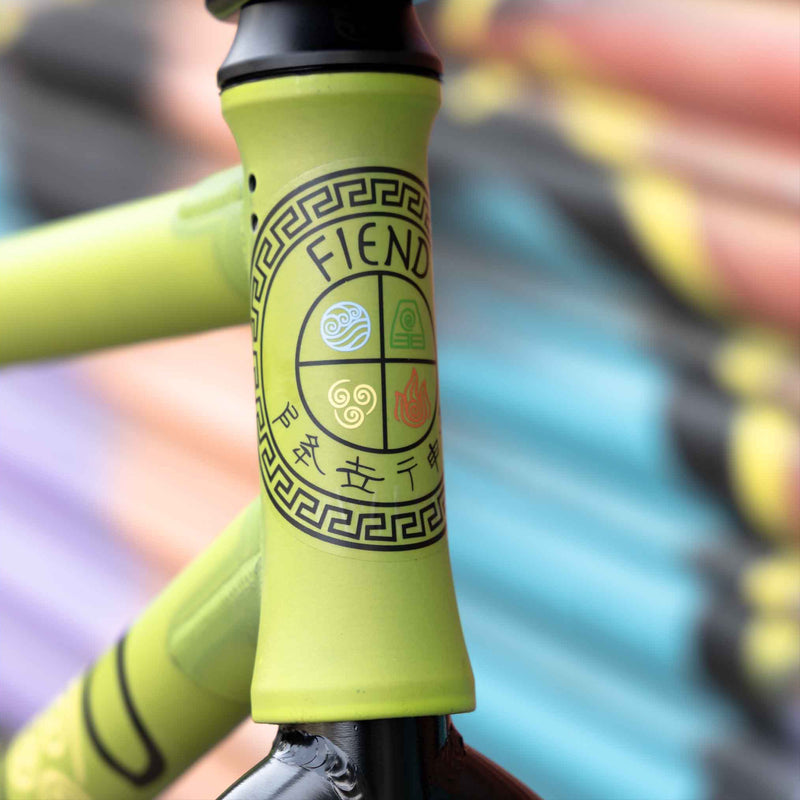

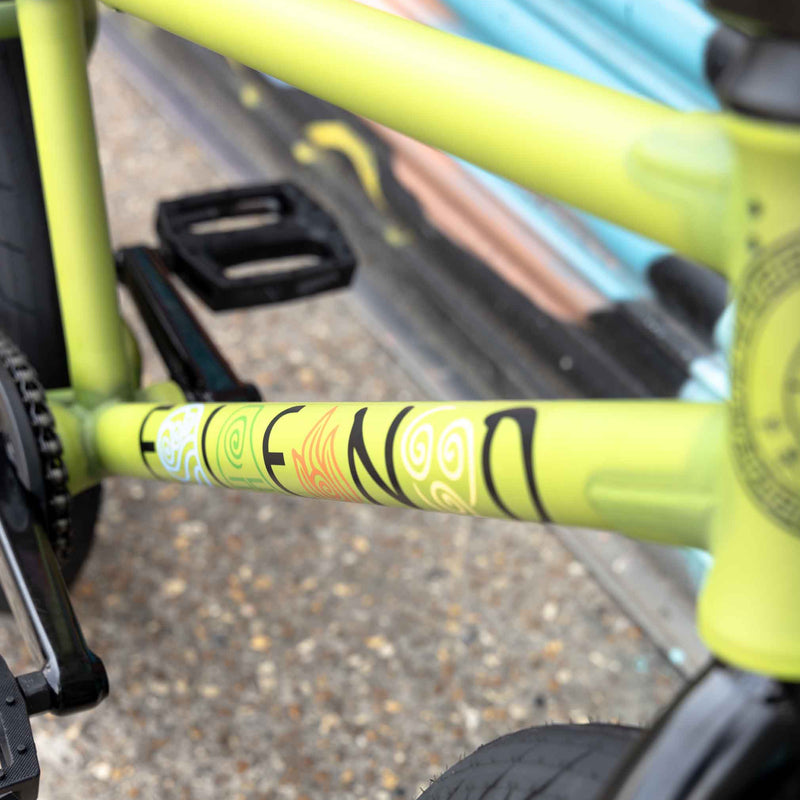

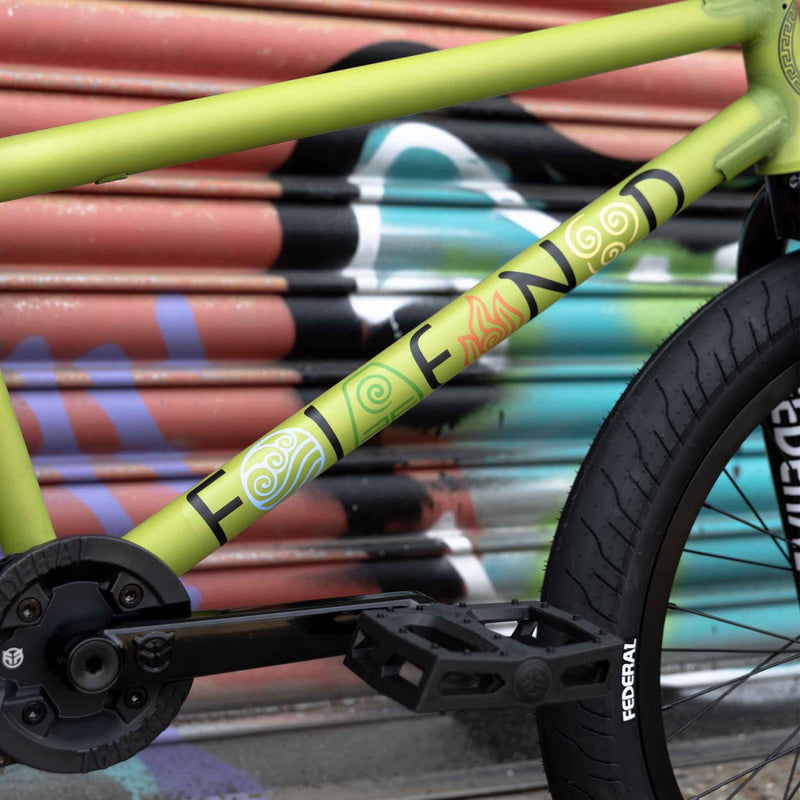

The Fiend Raekes BMX frame is the signature frame for Johnny Raekes and has his own custom geometry made for technical street BMX riding. It has a short chainstay (12.9”) with a tall stand over (9.5"). It comes in a Trans Earth Green finish and big graphics on the down tube and head tube. Made from 4130 chromoly throughout it also features a heat-treated Mid bottom bracket shell and integrated 5" head tube (also tapped and ready for gyro tabs), double-butted top, ovalized down tube with external head tube gussets, externally butted seat tube with integrated post clamp, ovalized chain stays, tapered seat stays with 'Flush Mount' removable brake mounts (Brake mounts sold separately) and 8mm thick investment cast dropouts with integrated chain tensioners.

**Brake mounts and hardware sold separately.

*Due to the nature of semi-transparent paint finishes the character of the raw tubing
will be visible and may contain vein-like abnormalities making each frame unique.

20.8″ top tube length
75.5* head tube
71* seat tube
9.5″ seat tube height (bottom bracket to top tube, center to center)
11.6″ Bottom Bracket Height
12.9″ chain stay

Bike Spec:

• Frame: Fiend Raekes - Trans Earth Green 20.8"

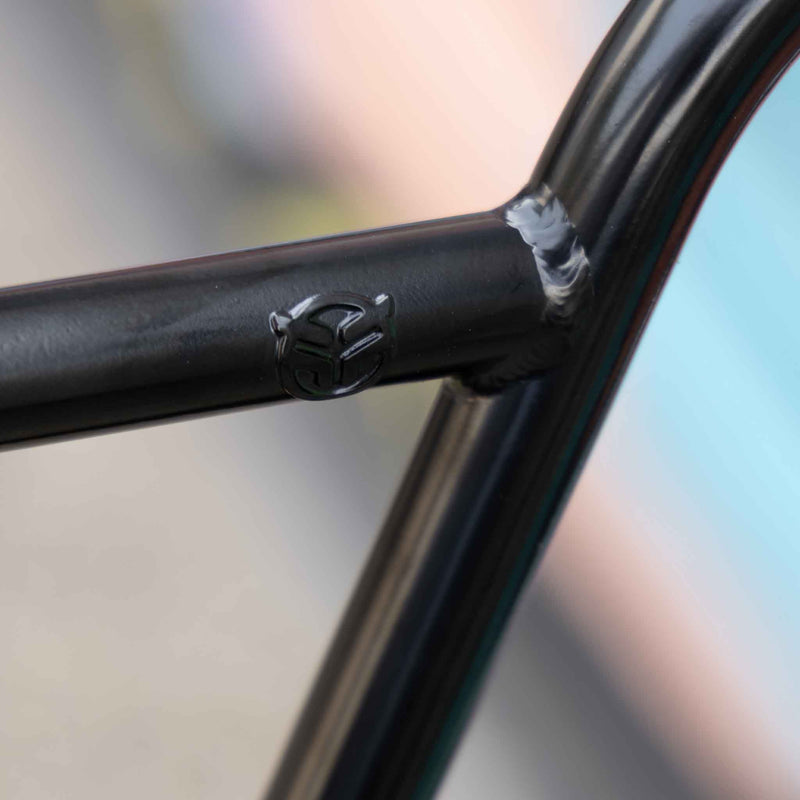

• Bars: Federal Assault Bars - Black 9.5"

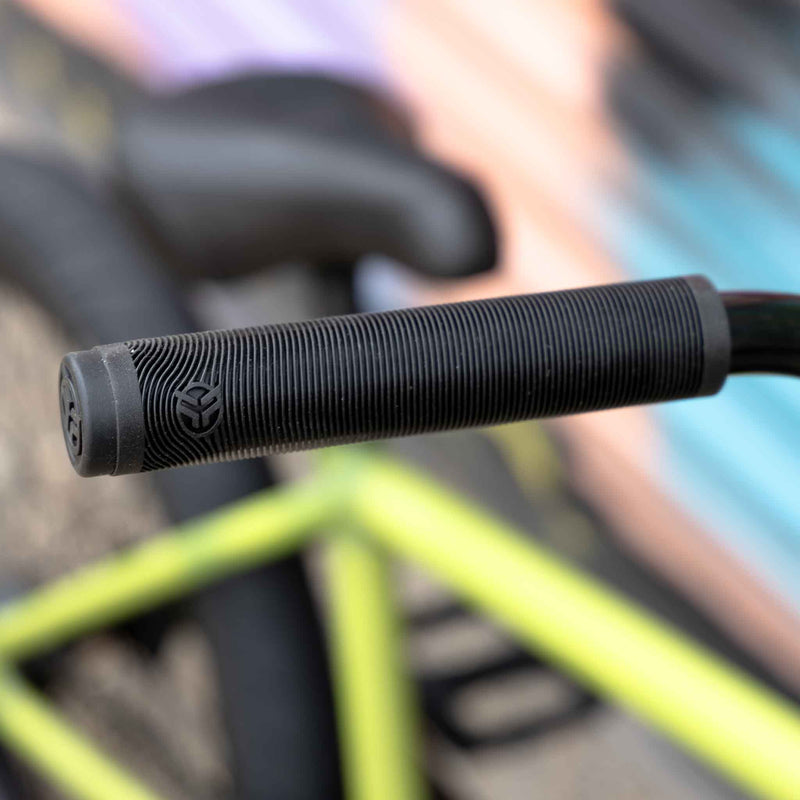

• Grips: Federal Rewind Flangeless Grips - Black

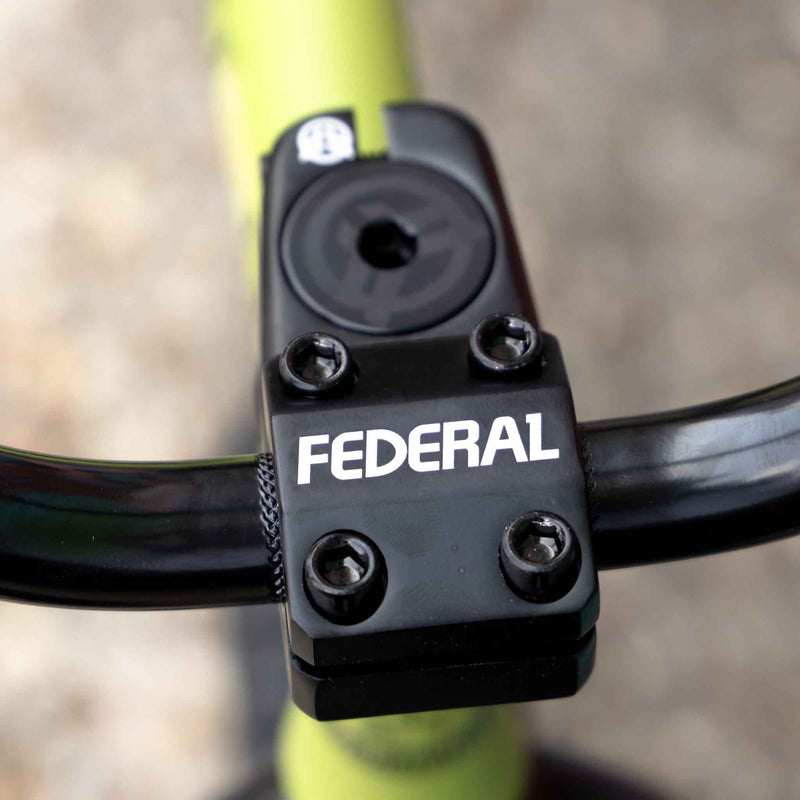

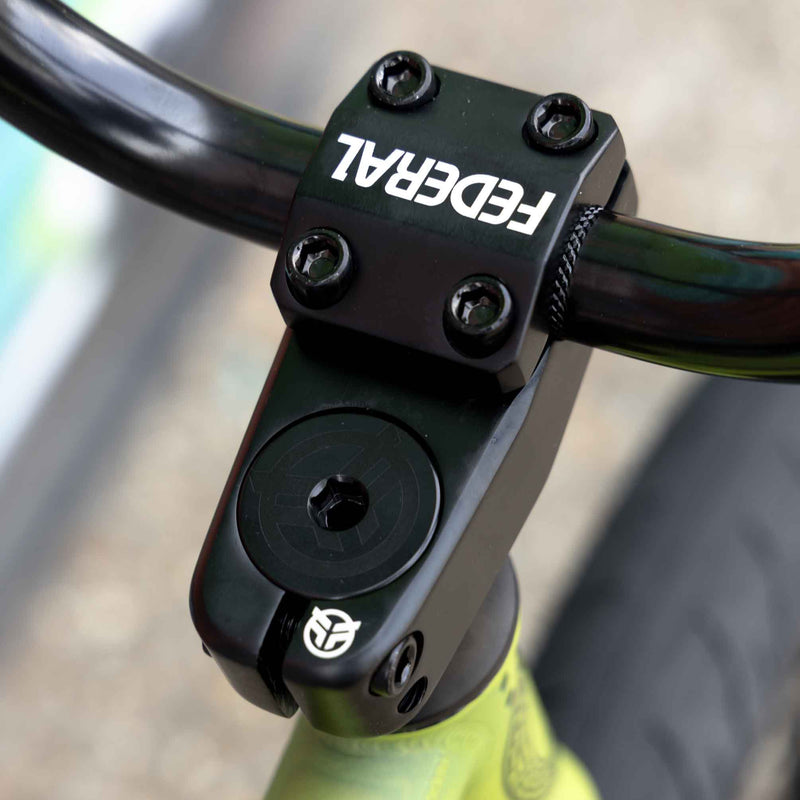

• Stem: Federal Element Top Load Stem - Black 50mm Reach
• Headset: Federal Headset - Black
• Forks: Federal Assault 22 Forks - Black 22mm Offset

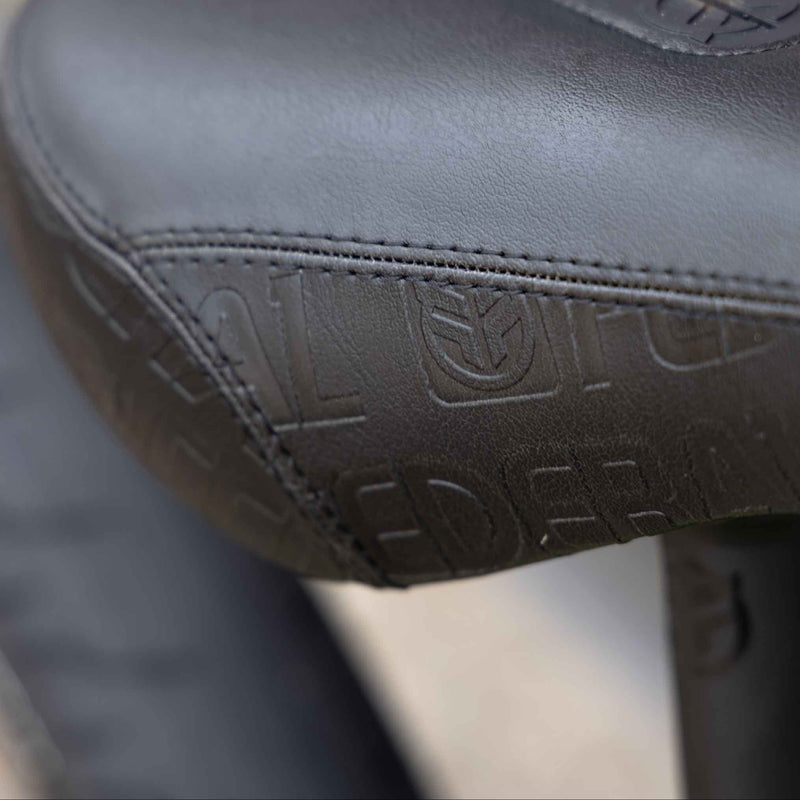

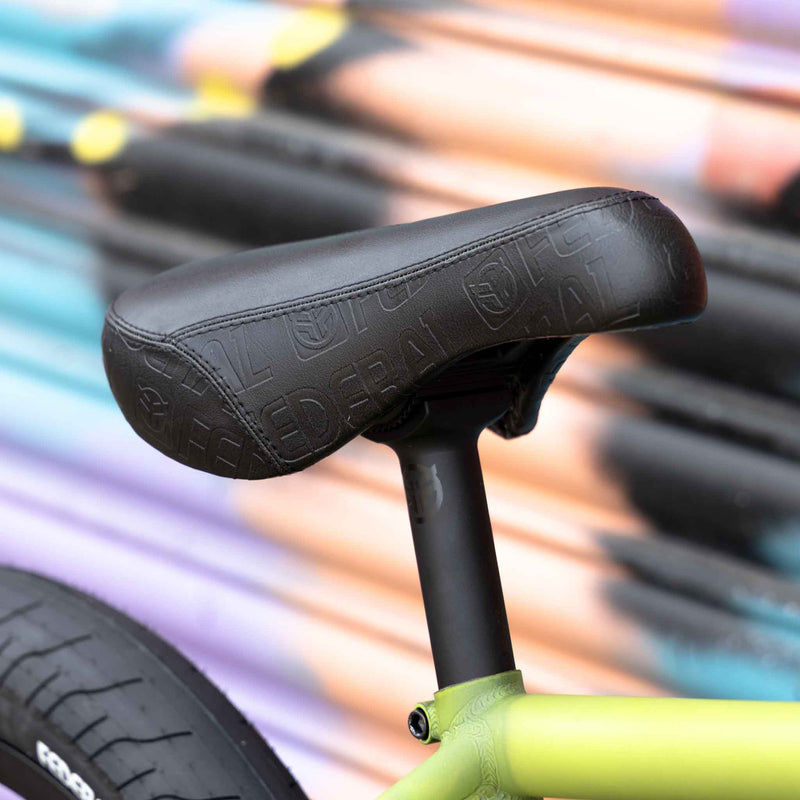

• Seat: Federal Mid Pivotal Debossed Logo Seat - Black
• Seat Post - Federal Pivotal 200mm Seat Post - Black 25.4mm

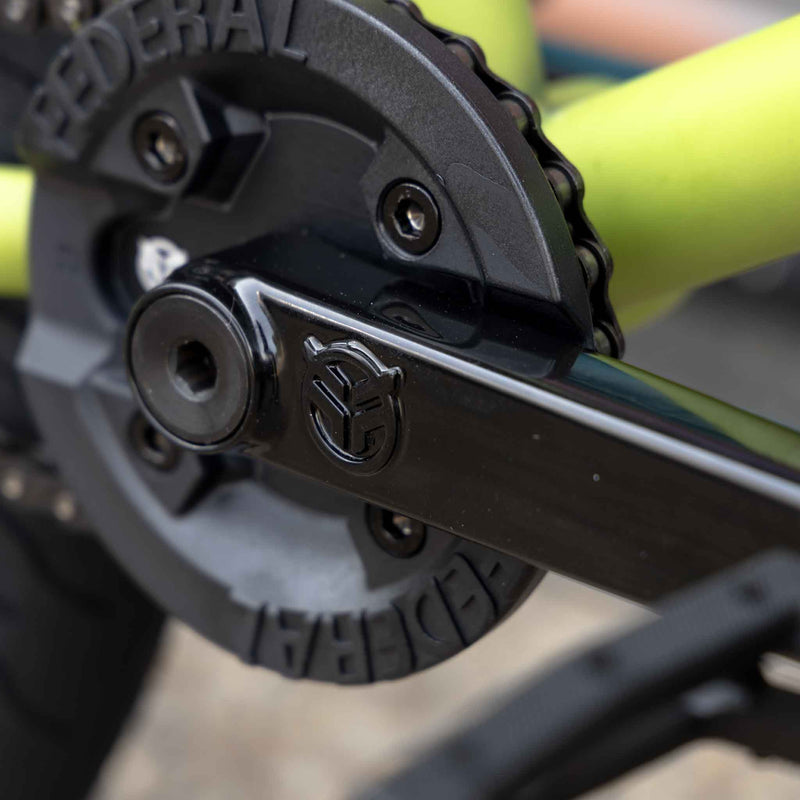

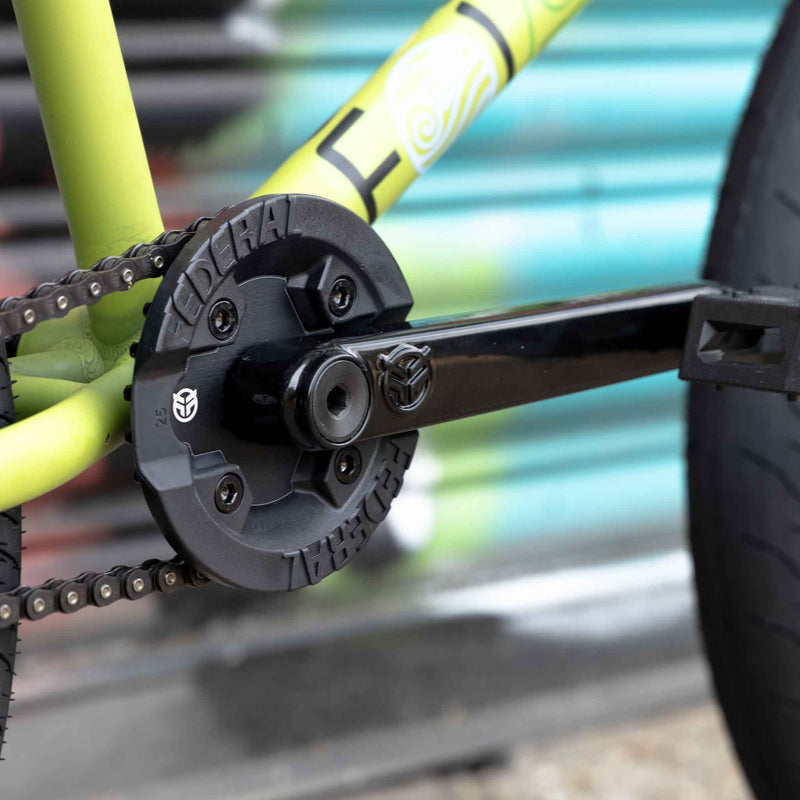

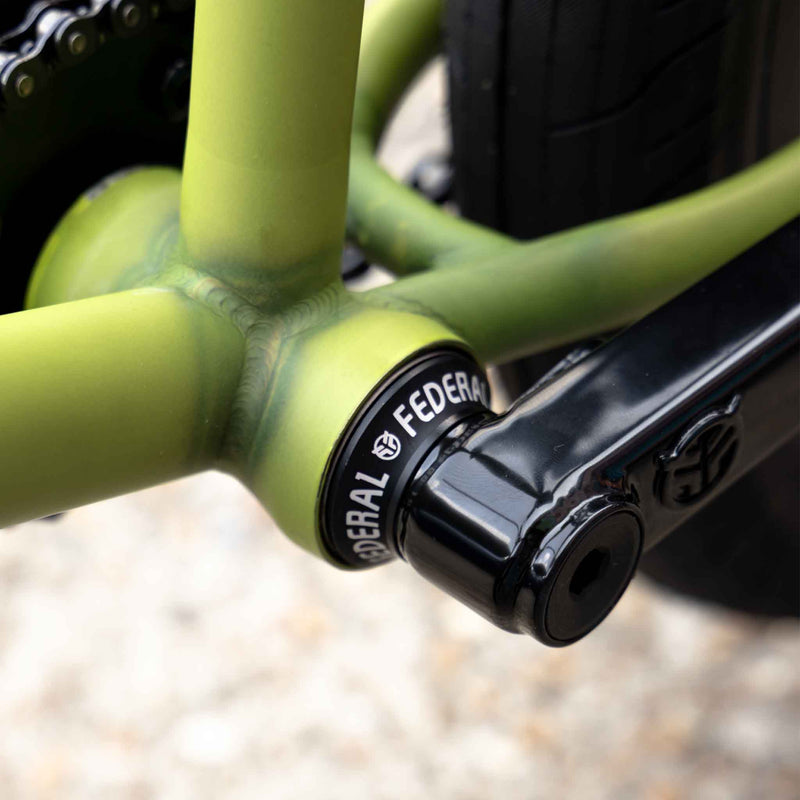

• Cranks: Federal Vice 2 24mm Cranks - Black 170mm

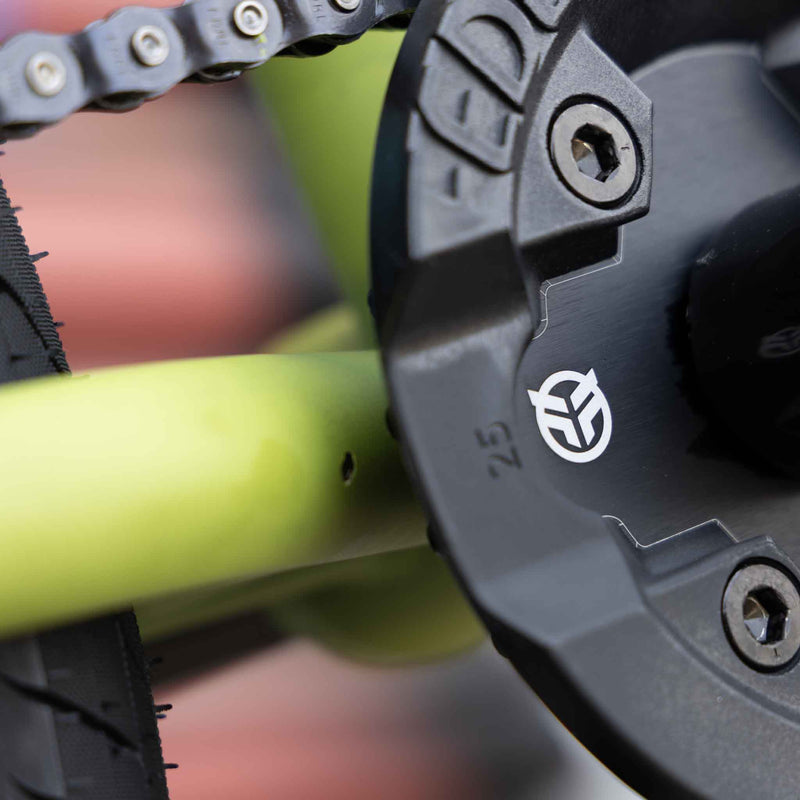

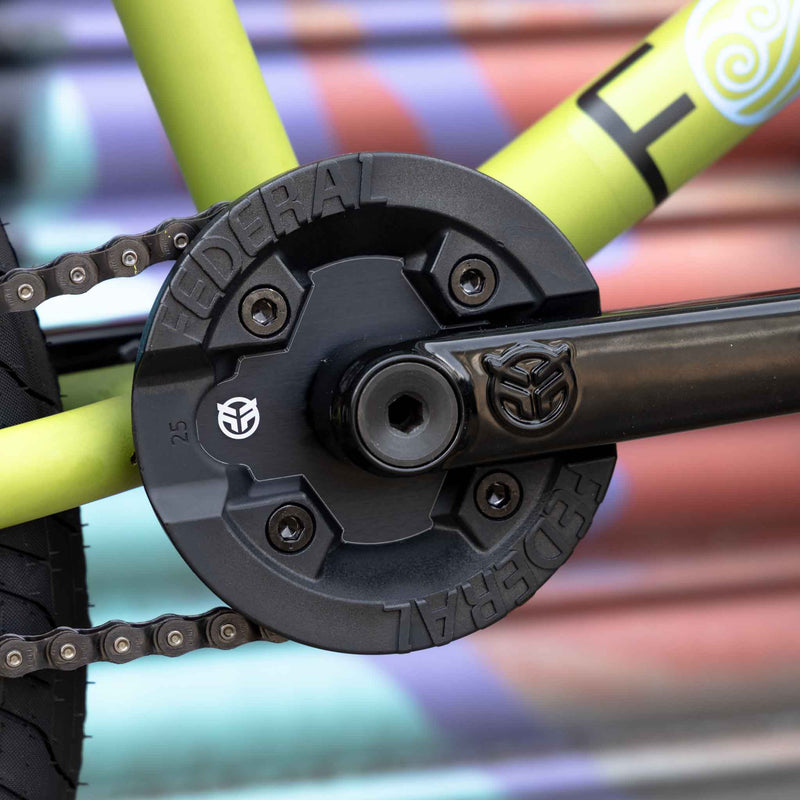

• Sprocket: Federal Impact Guard Sprocket - Black 25 Tooth

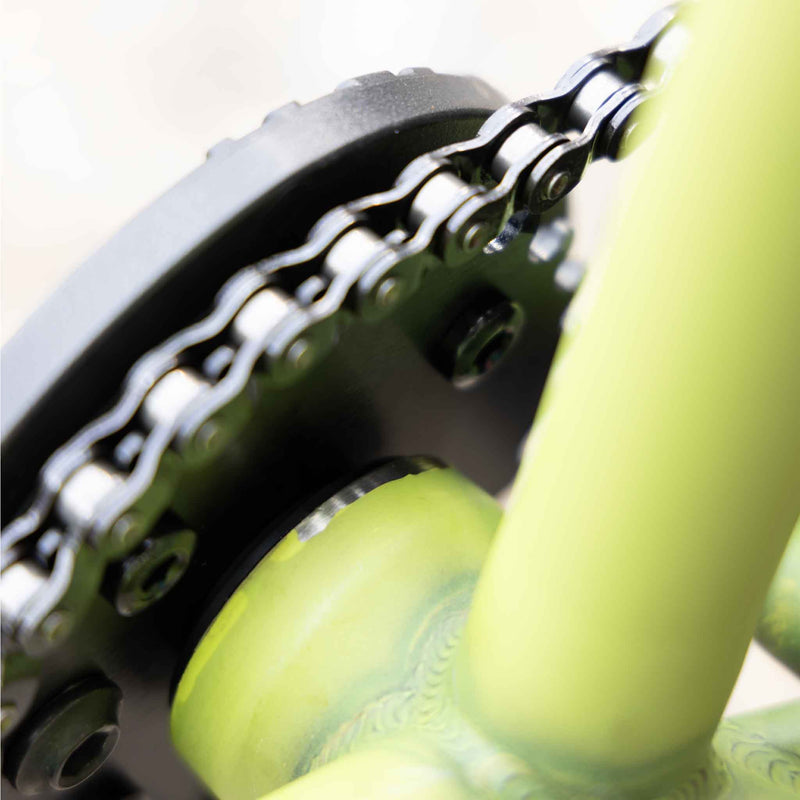

• Chain: Federal Half Link Chain - Black

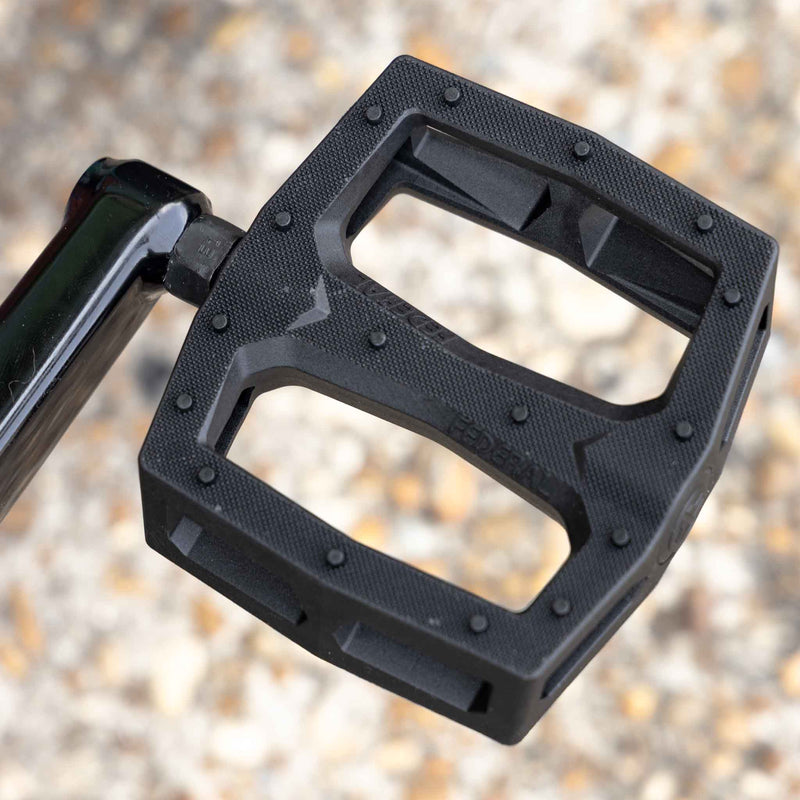

• Pedals: Federal Command Plastic Pedals - Black 9/16"

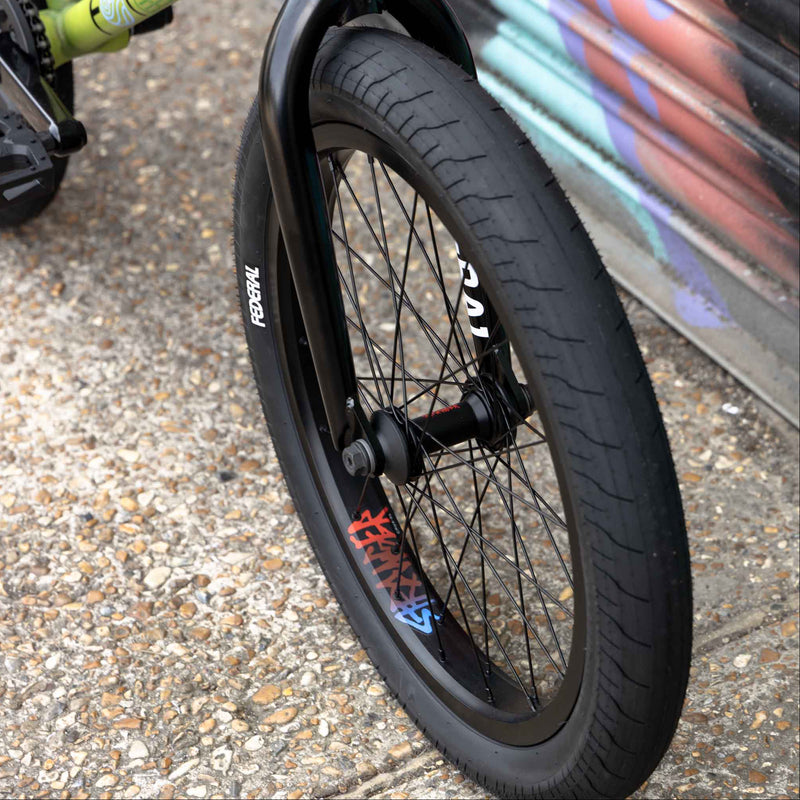

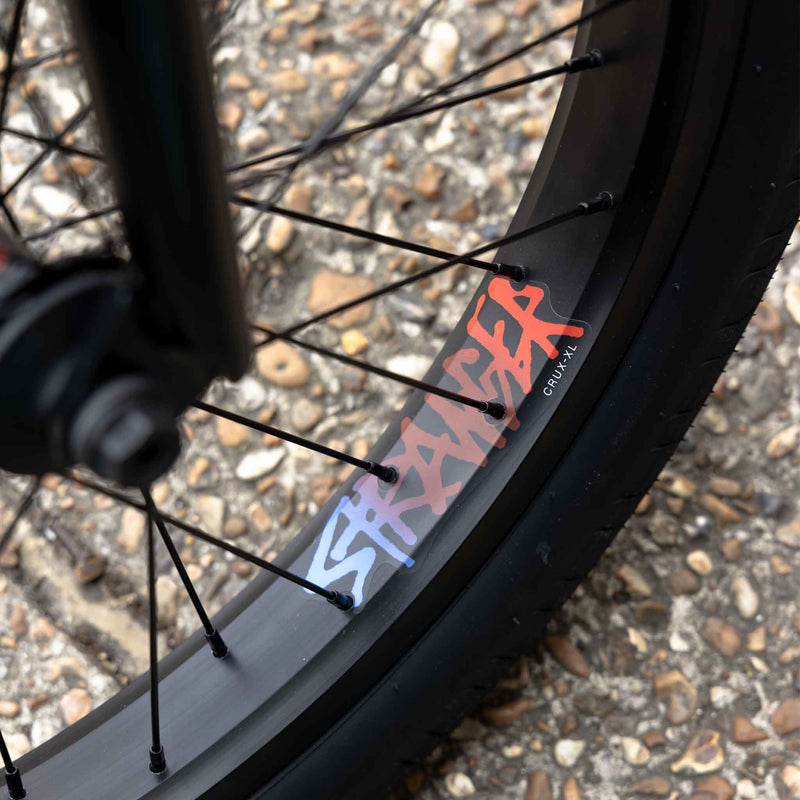

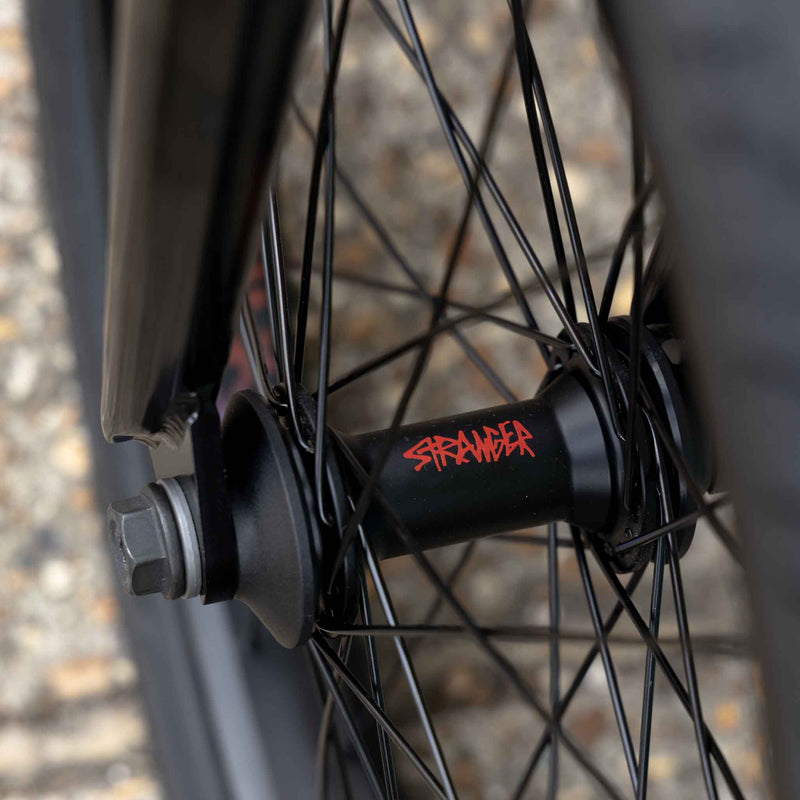

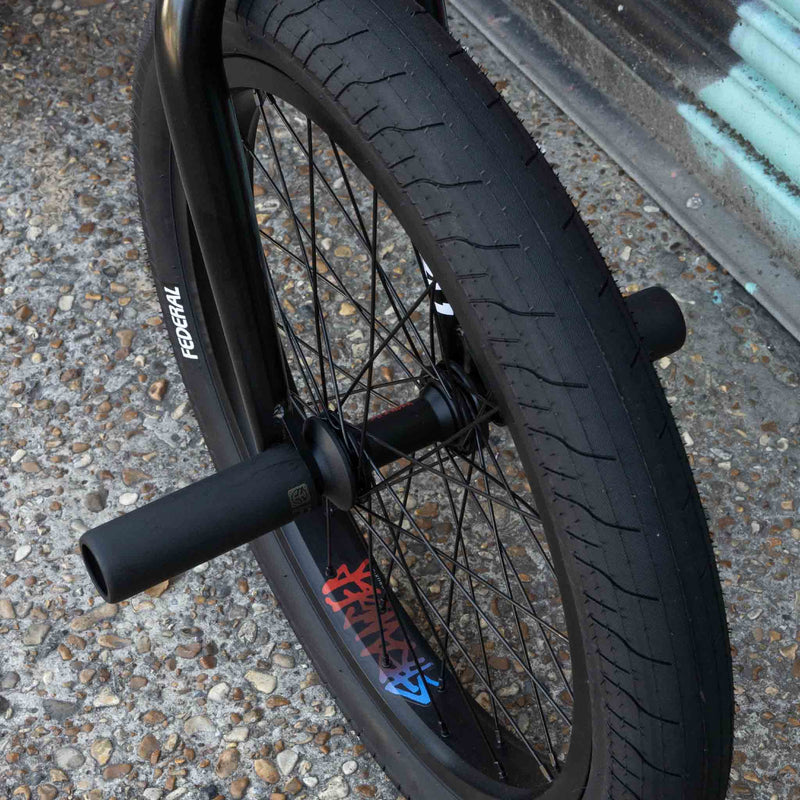

• Front Wheel - Stranger Crux V2 Front Wheel - Black Hub with Black XL Rim 10mm
• Rear Wheel - Stranger RHD Crux V2 Cassette Rear Wheel - Black Hub with Black XL Rim 9 Tooth

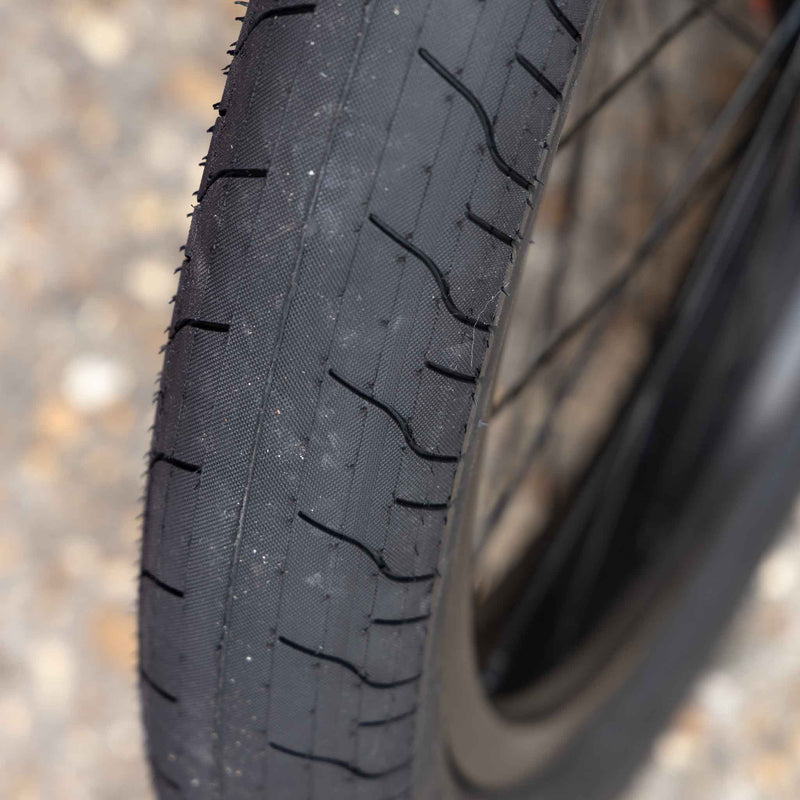

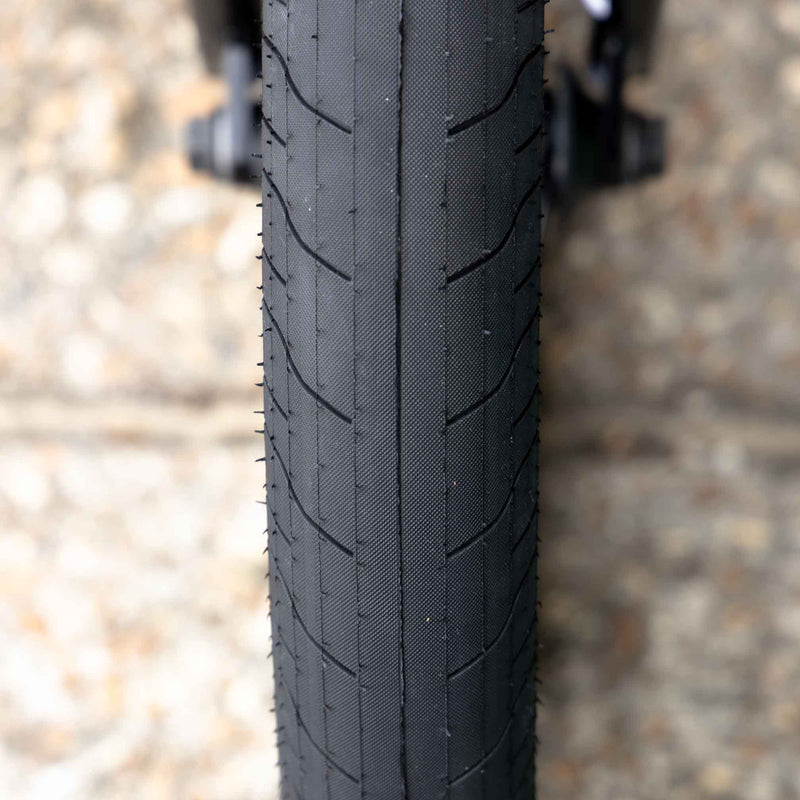

• Tyres: Federal Command LP Tyre - Black 2.40"

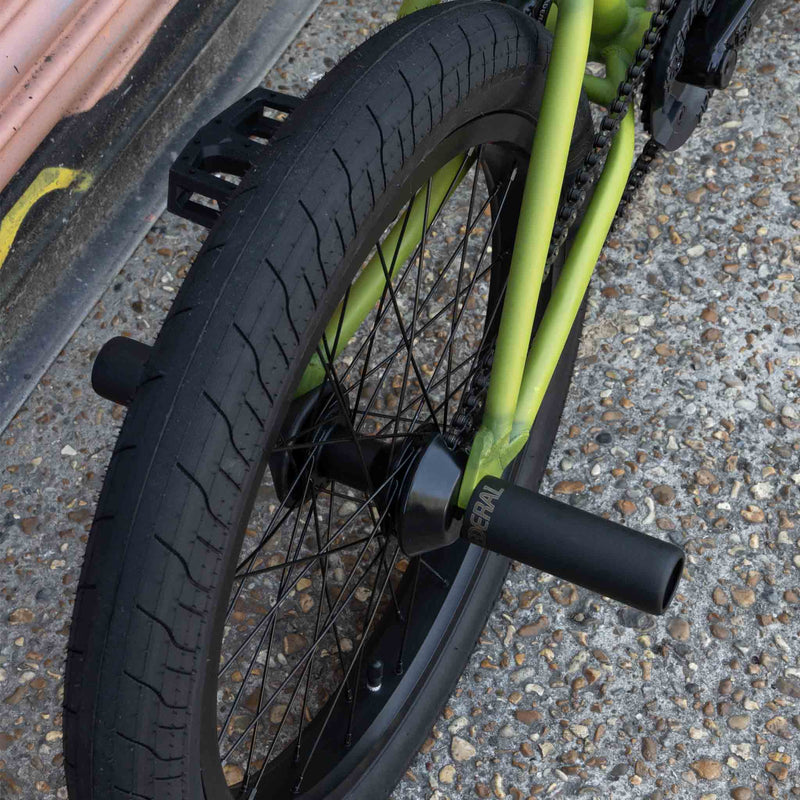

• Pegs: Federal Hollow Point 4.5" Chromoly x4

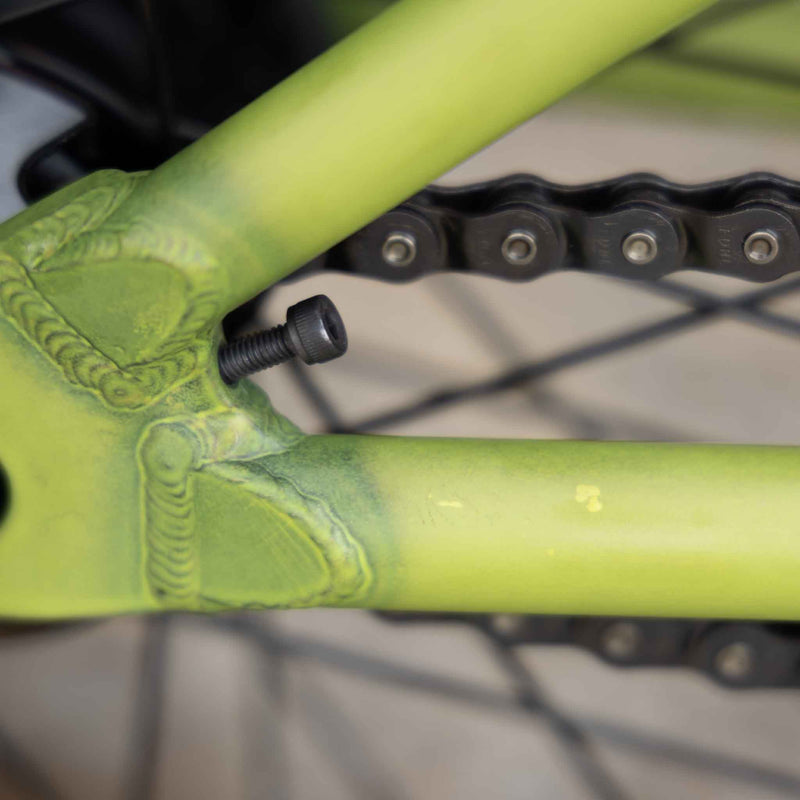

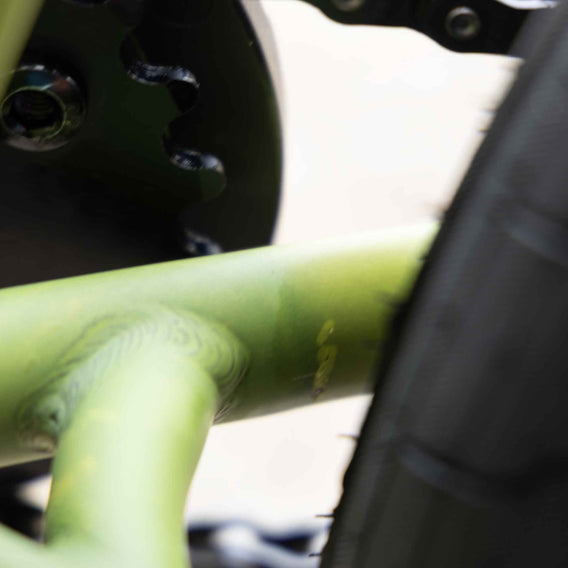

Please note there are some minor cosmetic marks on the frame, these are shown in the last 5 photos. There is a very small pinhole in the right side chain stay/drop out weld, shown in the final photo, this has been inspected and won't affect the structural integrity of the frame. If you have any questions regarding this please feel free to contact us via live chat, email or phone.

This bike is currently fully built, due to the time required to prepare the bike for shipping, same day shipping can't be guaranteed for this bike.
